Module 1 Lab: Cyber risk concepts and assets

Build an asset and risk register.

Lab Context

This lab uses synthetic asset risk records with exposure, vulnerability severity, control strength, threat activity, and business impact as a safe proxy for the course setting. It is not a substitute for institutional data, but it lets you practice the reasoning, metrics, and documentation pattern before working with real records.

Lab Tasks

1. Run the baseline analysis.

2. Identify the decision the metric supports.

3. Change one threshold, score weight, or input assumption.

4. Compare the result before and after your change.

5. Record one deployment risk that the synthetic data cannot reveal.

import numpy as np
import matplotlib.pyplot as plt

rng = np.random.default_rng(1)
n = 96
exposure = rng.beta(2, 4, size=n)
severity = rng.beta(2.5, 2.5, size=n)
control_gap = rng.beta(3, 5, size=n)
activity = rng.beta(2, 6, size=n)
business_impact = rng.beta(2, 3, size=n)

risk_score = 0.25*exposure + 0.25*severity + 0.20*control_gap + 0.15*activity + 0.15*business_impact
threshold = float(np.quantile(risk_score, 0.80))
priority = risk_score >= threshold

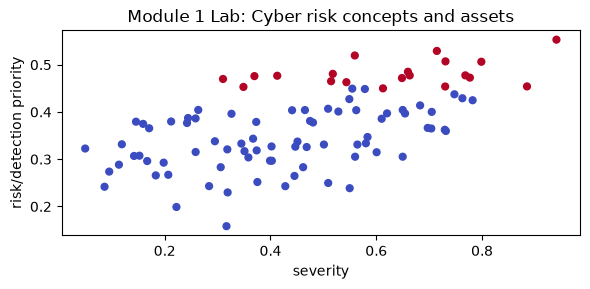

plt.figure(figsize=(6, 3))
plt.scatter(severity, risk_score, c=priority, cmap="coolwarm", s=24)
plt.xlabel("severity")
plt.ylabel("risk/detection priority")
plt.title("Module 1 Lab: Cyber risk concepts and assets")
plt.tight_layout()

summary = {
    "priority_count": int(priority.sum()),
    "threshold": threshold,
    "top_indices": np.argsort(risk_score)[-5:][::-1].tolist(),
    "review_note": "Inspect high-score cases for false positives and missing context before action.",
}
summary

{'priority_count': 20,
 'threshold': 0.45000046452708087,
 'top_indices': [50, 12, 17, 70, 15],
 'review_note': 'Inspect high-score cases for false positives and missing context before action.'}

reflection = {
    "what_changed": "",
    "metric_before": "",
    "metric_after": "",
    "interpretation": "",
    "synthetic_data_limit": "",
    "next_real_world_evidence_needed": "",
}
reflection

{'what_changed': '',
 'metric_before': '',
 'metric_after': '',
 'interpretation': '',
 'synthetic_data_limit': '',
 'next_real_world_evidence_needed': ''}
